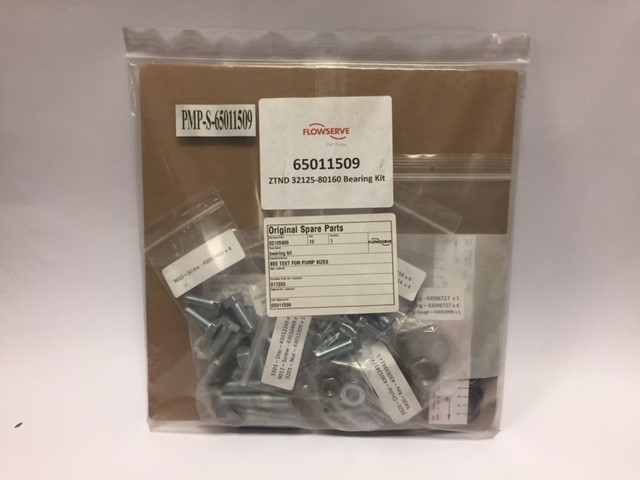

This bearing kit works on the following models of Flowserve SIHI pumps:
32-125,32-160,32-200,32-250,40-125,40-200,40-250,50-125,50-160,50-200,50-250,65-125,65-160,65-200,80-160
Contents of bearing kit are as follows:
| Gasket | 40.00 | 43005588 | 1 |
| Gasket | 40.00 | 43005373 | 1 |
| Gasket | 40.00 | 43005265 | 1 |
| Gasket | 40.00 | 43005504 | 1 |
| Gasket | 40.10 | 43004965 | 1 |
| O-Ring | 41.20 | 43007033 | 1 |
| Disc | 55.02 | 43012158 | 4 |
| Allen Head Screw | 91.40 | 43010914 | 4 |
| Circlip | 93.20 | 43015417 | 1 |
| Key | 94.00 | 43093942 | 1 |
| Disc | 55.00 | 43012180 | 8 |
| Stud | 90.22 | 43011731 | 8 |
| Hexagon Nut | 92.00 | 43011328 | 8 |
| Spacer | 52.50 | 43020626 | 1 |
| Hexagon Nut | 92.20 | 43011282 | 1 |
| Lockwasher | 93.10 | 43012300 | 1 |
| Key | 94.01 | 43092647 | 1 |
| Disc | 55.01 | 43012169 | 1 |
| Hexagon Screw | 90.12 | 43010469 | 1 |
| Hexagon Nut | 92.01 | 43011309 | 1 |
| Grease Nipple | 63.60 | 43015724 | 1 |
| Hexagon Screw | 90.10 | 43010363 | 4 |
| Ball Bearing | 32.10 | 43000852 | 1 |
| Hexagon Screw | 90.13 | 43010465 | 4 |
| Radial Shaft Seal Ring | 42.10 | 43006727 | 1 |
| Radial Shaft Seal Ring | 42.13 | 43006727 | 6 |
| Seal Ring Gauge | 99.00 | 43093998 | 1 |
